Written by Framing is the backbone of any construction project. It provides the structural support for buildings, ensuring they are sturdy and safe. Whether you’re building a residential home, a commercial building, or any other structure, understanding the techniques and materials involved in construction framing is crucial. This comprehensive guide will cover the fundamental aspects of construction framing, including various techniques and materials used to create strong and reliable structures.
Understanding Construction Framing
Construction framing is the process of assembling the structural skeleton of a building. It involves creating a framework of beams, columns, and other components that support the building’s walls, roof, and floors. The primary goal of framing is to ensure the structure can withstand loads and forces, including the weight of the building materials, occupants, and environmental factors such as wind and snow.
Types of Framing Techniques
Several framing techniques are used in construction, each with its advantages and applications. The choice of technique depends on factors such as the type of building, the materials used, and the specific requirements of the project.
1. Platform Framing

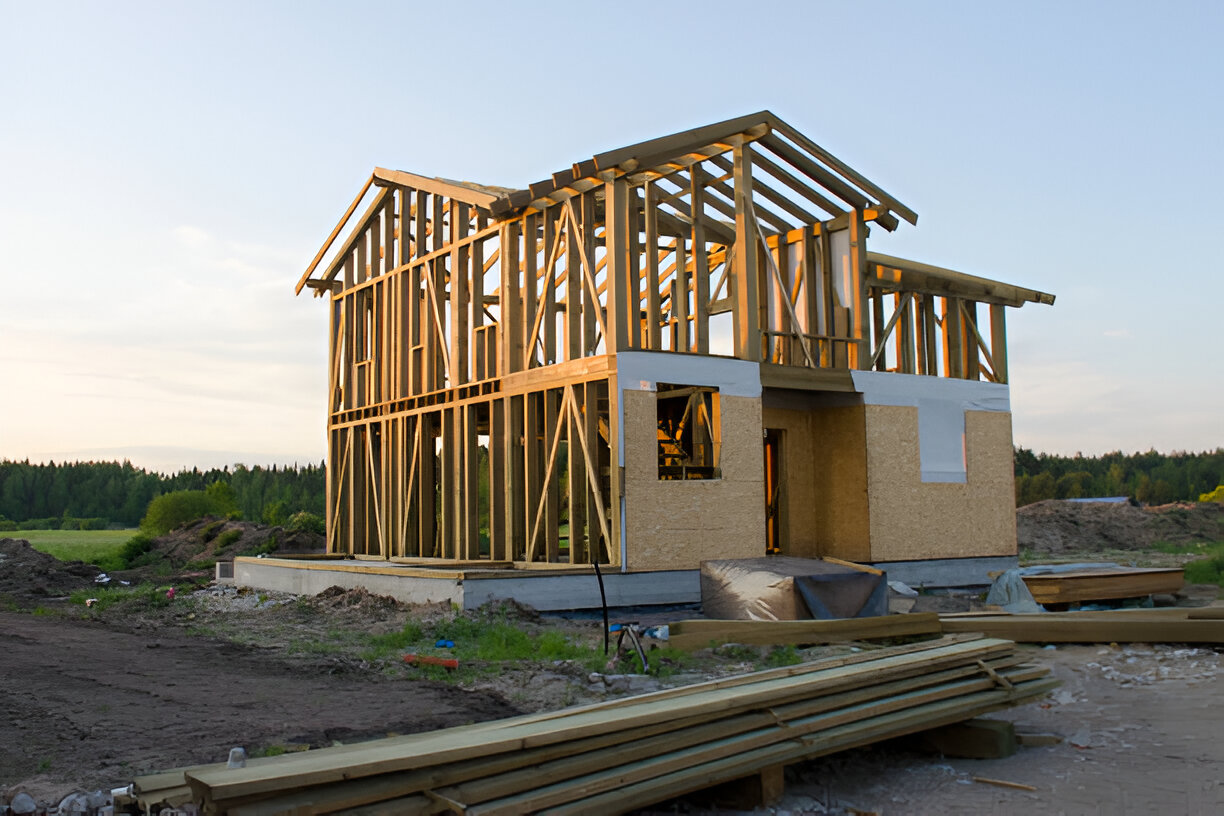

Platform framing, also known as stick framing, is the most common technique used in residential construction. In this method, each floor of the building is framed separately. The process begins with the construction of a platform or floor, followed by the walls, and then the next floor platform is built on top of the walls. This technique is popular because it is straightforward, cost-effective, and adaptable to various building designs.
Advantages:
- Simplicity and ease of construction
- Flexibility in design and modifications
- Cost-effective and suitable for a wide range of building types
Disadvantages:
- Requires more time and labor compared to some other methods
- Potential for differential settling between floors
2. Balloon Framing
Balloon framing was commonly used in the past but has largely been replaced by platform framing. In balloon framing, the wall studs run continuously from the foundation to the roofline, with floors attached to the studs. This technique provides strong, continuous walls but can be more challenging to construct.
Advantages:
- Strong, continuous walls
- Reduced risk of differential settling
Disadvantages:
- More complex and labor-intensive
- Requires longer studs, which can be more expensive
3. Timber Framing
Timber framing is an ancient technique that uses large wooden beams and posts to create the structural framework. This method is often used in traditional and custom-built homes. Timber framing provides a unique aesthetic appeal and exceptional strength.
Advantages:
- Aesthetic appeal and unique design possibilities
- Excellent strength and durability
Disadvantages:
- Higher cost due to the use of large timbers
- Requires specialized skills and tools
4. Steel Framing
Steel framing is commonly used in commercial and industrial construction. It involves using steel beams, columns, and studs to create the structural framework. Steel framing is known for its strength, durability, and resistance to fire, pests, and rot.
Advantages:
- High strength-to-weight ratio
- Resistant to fire, pests, and rot
- Prefabricated components can speed up construction
Disadvantages:
- Higher material cost compared to wood
- Requires specialized tools and skills
Key Framing Components
Several essential components make up the framing of a building. Understanding these components is crucial for successful construction framing.
1. Studs
Studs are vertical framing members used to create walls. They are typically spaced 16 or 24 inches apart and provide support for the building’s wall coverings and insulation. Common materials for studs include wood and steel.
2. Plates
Plates are horizontal framing members that connect the studs at the top and bottom of the wall. The bottom plate, or sole plate, sits on the floor, while the top plate runs along the top of the wall. Double top plates are often used for added strength and stability.
3. Joists
Joists are horizontal framing members used to support floors and ceilings. They are typically spaced 16 or 24 inches apart and are supported by beams, walls, or other load-bearing structures. Joists can be made from wood, steel, or engineered materials.
4. Beams
Beams are horizontal structural members that support the weight of the building and transfer loads to the foundation. They are used to support floors, roofs, and walls. Beams can be made from wood, steel, or engineered materials.
5. Rafters
Rafters are inclined framing members used to support the roof. They run from the top of the walls to the ridge beam, creating the roof’s slope. Rafters can be made from wood, steel, or engineered materials.
Materials Used in Construction Framing
Various materials are used in construction framing, each with its advantages and applications. The choice of material depends on factors such as the type of building, budget, and specific requirements of the project.
1. Wood
Wood is the most common material used in residential construction framing. It is readily available, cost-effective, and easy to work with. Common types of wood used for framing include pine, fir, and spruce.
Advantages:
- Readily available and cost-effective
- Easy to work with and modify
- Renewable and sustainable
Disadvantages:
- Susceptible to fire, pests, and rot
- Can warp or shrink over time
2. Steel
Steel is commonly used in commercial and industrial construction. It is known for its strength, durability, and resistance to fire, pests, and rot. Steel framing components are often prefabricated, which can speed up construction.
Advantages:
- High strength-to-weight ratio
- Resistant to fire, pests, and rot
- Prefabricated components can speed up construction
Disadvantages:
- Higher material cost compared to wood
- Requires specialized tools and skills
3. Engineered Wood
Engineered wood products, such as laminated veneer lumber (LVL) and oriented strand board (OSB), are made from wood fibers or veneers bonded together with adhesives. These materials are designed to provide greater strength, stability, and consistency than traditional wood.
Advantages:
- Greater strength and stability compared to traditional wood
- Consistent quality and performance
- Can be used for long spans and heavy loads
Disadvantages:
- Higher cost compared to traditional wood
- Requires specialized tools and skills
Framing Techniques and Best Practices
1. Proper Measurement and Layout
Accurate measurement and layout are crucial for successful framing. Use precise measuring tools and techniques to ensure that all components are correctly aligned and spaced. Double-check measurements before cutting materials to avoid mistakes and waste.
2. Secure Connections
Ensure that all connections between framing components are secure and properly fastened. Use appropriate fasteners, such as nails, screws, or bolts, and follow manufacturer recommendations for spacing and installation.
3. Plumb and Level
Ensure that all framing components are plumb (vertical) and level (horizontal). Use a level and plumb line to check the alignment of studs, plates, and other components. Correct any misalignments before proceeding with construction.
4. Bracing and Reinforcement
Provide adequate bracing and reinforcement to prevent movement and ensure stability. Temporary bracing can be used during construction to hold components in place, while permanent bracing is used to provide long-term support.
5. Safety Considerations
Always prioritize safety during framing construction. Use appropriate personal protective equipment (PPE), such as hard hats, safety glasses, and gloves. Follow safety guidelines and regulations, and ensure that all workers are trained and aware of potential hazards.
Conclusion
Construction framing is a fundamental aspect of building strong and reliable structures. Understanding the various framing techniques, materials, and best practices is essential for successful construction projects. By selecting the right materials, using proper techniques, and following best practices, you can create a sturdy and safe framework for any building.
FAQs
1. What is the most common framing technique used in residential construction?
Platform framing, also known as stick framing, is the most common technique used in residential construction. It involves building each floor separately, making it a straightforward and cost-effective method.
2. How often should I inspect and maintain the framing of my building?
Regular inspections should be conducted at least annually to check for signs of damage or deterioration. Maintenance should be performed as needed to address any issues and ensure the structural integrity of the building.
3. What are the advantages of using steel framing over wood framing?
Steel framing offers several advantages over wood framing, including higher strength-to-weight ratio, resistance to fire, pests, and rot, and the ability to use prefabricated components that can speed up construction.
4. Can engineered wood products be used for all types of framing?
Engineered wood products, such as laminated veneer lumber (LVL) and oriented strand board (OSB), can be used for many types of framing, particularly in applications that require greater strength, stability, and consistency than traditional wood.
5. What safety precautions should be taken during framing construction?
Safety precautions during framing construction include using appropriate personal protective equipment (PPE), following safety guidelines and regulations, ensuring all workers are trained and aware of potential hazards, and providing adequate bracing and reinforcement to prevent movement and ensure stability.
